"Eclipse on Top of the World"
The March 20, 2015, Total Solar Eclipse


Introduction Sun/ Moon
Rise/ Set 		 Sun Altitude
Eclipse Day		 Orientation- corona
Sun's axis
EQ mount alignment		 Sky at totality  Photographic Information Power & Batteries Further reading

PHOTOGRAPHIC INFORMATION

Fields of view

APS SIZE SENSOR (15.7 X 23.5 mm) FULL FRAME SENSOR (24 X 36 mm)
ANGLE OF VIEW
(deg)		 DX vert
 (mm)		 DX Horiz
 (mm)		 DX diag
 (mm)		 35mm vert
 (mm)		 35mm horiz
 (mm)		 35mm diag
(mm)
Lens focal length(mm) 15.8 23.0 27.9 25.0 36.0 43.8
10
12
16
18
20
24
28
31
35
45
50
70
80
100
135
150
200
300
400
500
600
700
1000
1250
1500		 76.6
66.7
52.6
47.4
43.1
36.4
31.5
28.6
25.4
19.9
18.0
12.9
11.3
9.0
6.7
6.0
4.5
3.0
2.3
1.8
1.5
1.3
0.9
0.7
0.6		 98.0
87.6
71.4
65.2
59.8
51.2
44.7
40.7
36.4
28.7
25.9
18.7
16.4
13.1
9.7
8.8
6.6
4.4
3.3
2.6
2.2
1.9
1.3
1.1
0.9		 108.7
98.6
82.2
75.6
69.8
60.3
53.0
48.5
43.5
34.5
31.2
22.5
19.8
15.9
11.8
10.6
8.0
5.3
4.0
3.2
2.7
2.3
1.6
1.3
1.1		 102.7
92.3
76.0
69.6
64.0
55.0
48.1
43.9
39.3
31.1
28.1
20.3
17.8
14.3
10.6
9.5
7.2
4.8
3.6
2.9
2.4
2.0
1.4
1.1
1.0		 121.9
112.6
96.7
90.0
84.0
73.7
65.5
60.3
54.4
43.6
39.6
28.8
25.4
20.4
15.2
13.7
10.3
6.9
5.2
4.1
3.4
2.9
2.1
1.7
1.4		 131.0
122.6
107.7
101.2
95.2
84.8
76.1
70.5
64.1
51.9
47.3
34.8
30.6
24.7
18.4
16.6
12.5
8.4
6.3
5.0
4.2
3.6
2.5
2.0
1.7

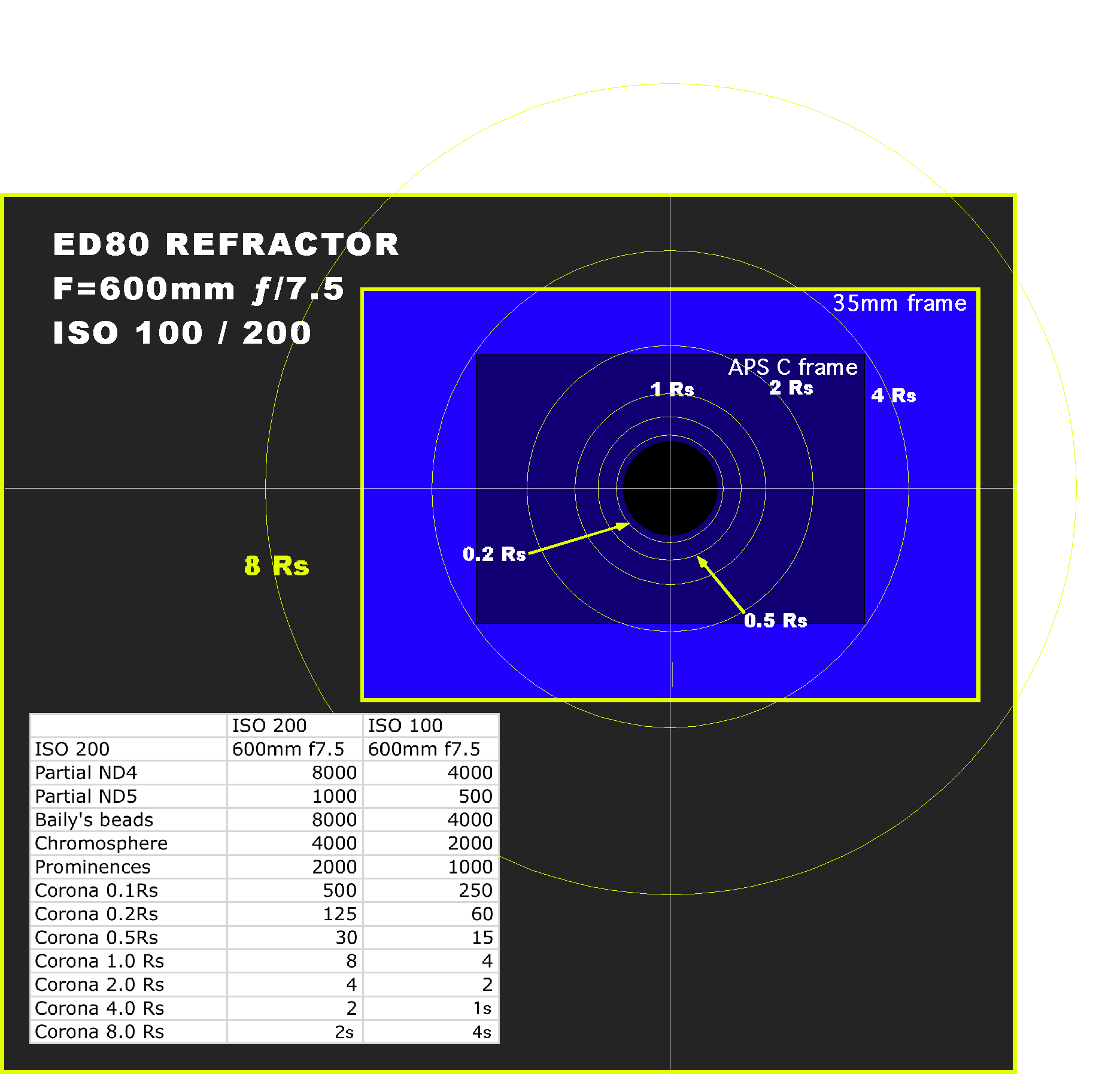

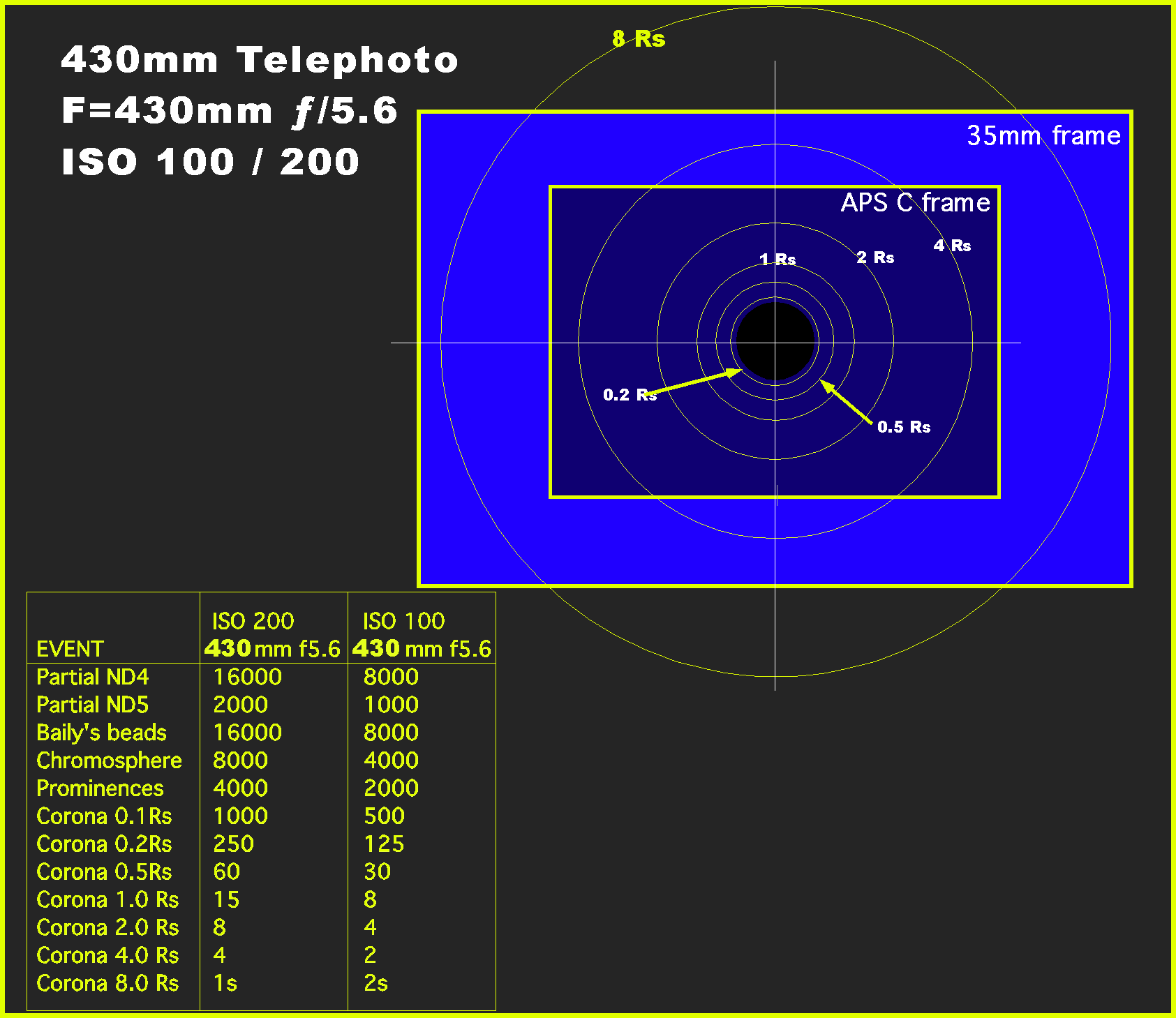

Exposure and field of view diagrams

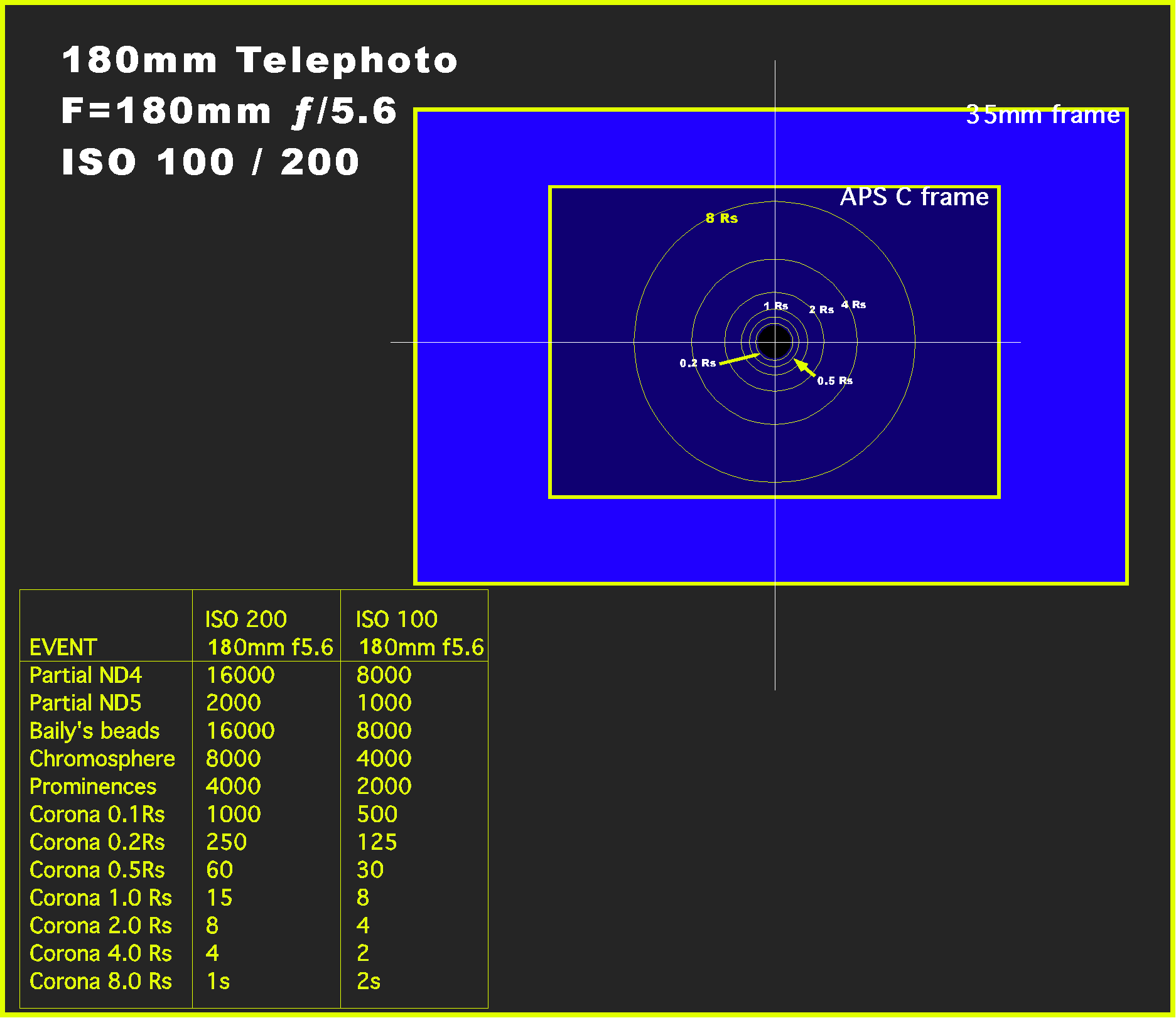

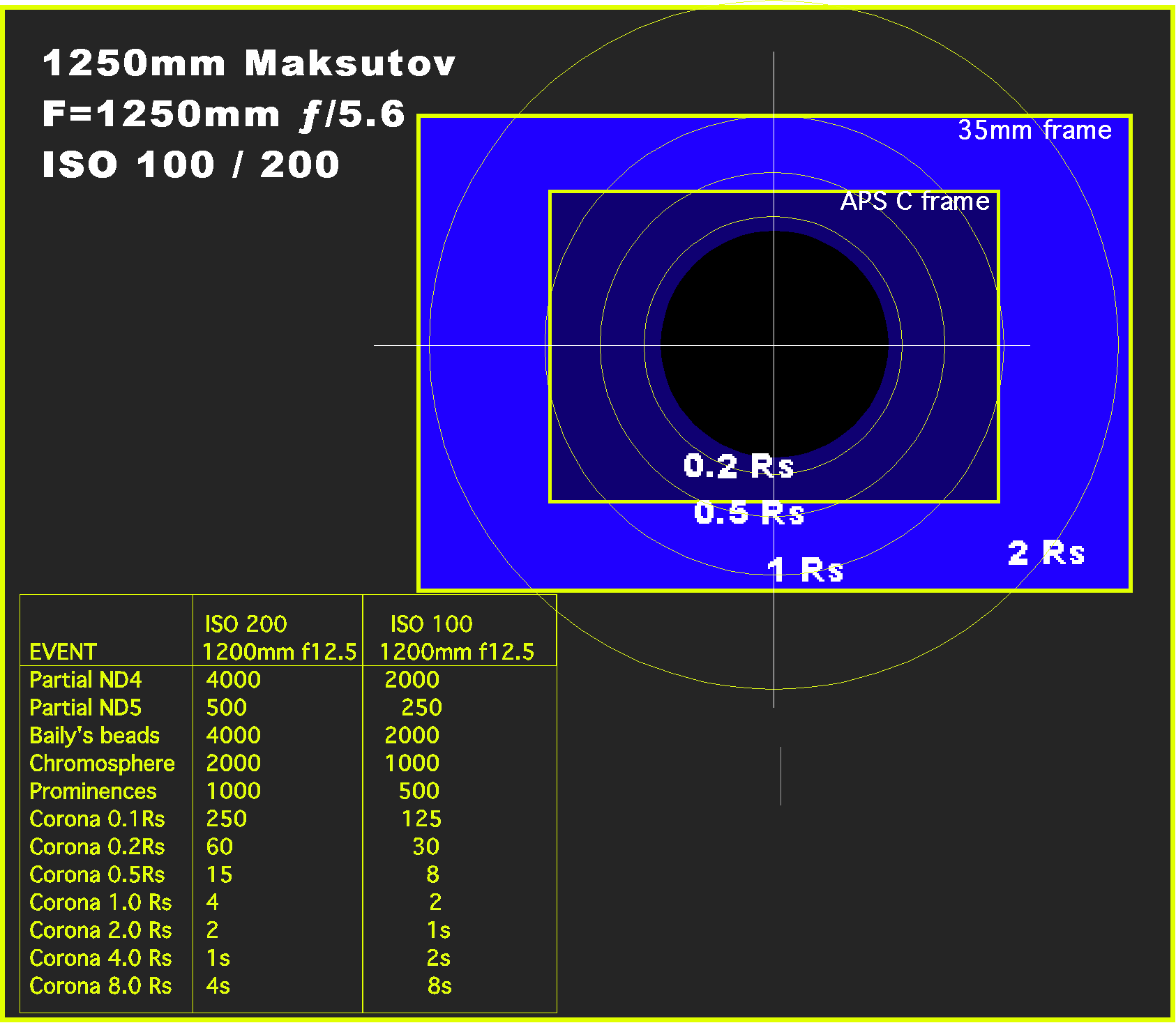

The exposure diagrams below have a table of values at a typical f-stop.  The diagram shows the size of the solar disk and  field of view for APS and full frame cameras of varoius extents of the corona.  For a short telephoto such as a 180mm or 300mm, even the limited field of an APS sensor covers the corona out to 8 solar radii.  But if you use a longer focal length objective such as the 1250mm example at the end, there is little point bracketing to expose the outer corona if it lies outside the camera sensor field of view.
